• Chrome front bumper w/glossy body-color top cover
• Chrome rear bumper
• Black lower air dam
• Front fender vents
• Black box-rail & tailgate top-edge moldings
• Molded black cab steps
• Grille w/medium platinum insert & chrome surround
• Dual beam jewel effect headlamps
• Fog lamps
• Pickup box/cargo lights
• Clearance lights-inc: roof, rear fender, below tailgate
• Underhood service light
• Black fold-away pwr mirrors
• Black door handles
• Solar tinted windshield & front door glass
• Rear door & window privacy glass
• Sliding rear window
• Interval windshield wipers
• Front license plate bracket *Standard in states where required. Optional in all other states.*
• Rear license plate bracket
• Removable locking tailgate w/black handle & Tailgate Assist

• Premium leather 40/20/40 split front bench seat-inc: center armrest, cupholders, storage, floor console
• Driver & front passenger manual lumbar support
• Pwr driver & front passenger seats
• FlexFold 60/40 rear bench seat w/fold-flat feature, grocery hooks, dual cupholders, tray, steel load floor
• Color-keyed carpet full-floor covering
• Front/rear color-keyed carpeted floor mats
• Color-keyed scuff plates
• Black leather-wrapped steering wheel w/audio & climate controls
• Tilt steering wheel
• SecuriLock anti-theft ignition
• Pwr windows w/driver one-touch-down & backlit switches
• Pwr door locks w/backlit switches
• Accessory delay
• Advanced security group-inc: autolamp, auto-lock/-unlock, remote keyless entry w/(2) key fobs, illum entry, driver side wired keypad
• Cruise control w/steering wheel mounted controls
• Premium AM/FM stereo w/CD player-inc: MP3 capability, auxiliary audio input jack, digital clock, (4) speakers
• Dual zone electronic automatic temperature control (EATC)
• (4) air registers w/positive shut-off
• Auxiliary pwr point
• Dash-top tray
• Glove box
• Ashtray & cigar lighter
• Color-keyed door trim panel-inc: soft armrest, grab handle, reflector, woodgrain upper applique, upper & lower map pockets
• Instrument panel mounted storage bin & trash bag hook
• Electrochromic rearview mirror w/compass
• Overhead console-inc: garage door opener & sunglass bin
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & passenger grab handles
• Rear seat LH/RH grab handles
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed cloth sunvisors-inc: driver-side map strap, dual covered lighted mirrors
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• Driver & front passenger airbags
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats

6.4L OHV V8 TURBO-DIESEL POWER STROKE ENGINE

• 135-amp HD alternator
• dual 750 CCA battery
• turbo boost gauge
• air filter minder
• 15
• 000# trailer hitch receiver w/2.5" hitch & 2" hitch adapter *Includes Winter Front Grille Cover in AK
• CO
• ID
• IA
• ME
• MI
• MN
• MT
• NH
• NY
• ND
• SD
• VT
• WI
• WY*

• Height Passenger Seat Power Adjustments
• Height Driver Seat Power Adjustments
• Trip Odometer
• Auto Delay Off Headlights
• Rear Cupholders
• Door Pockets Storage
• Chrome Front Bumper Color
• Grocery Bag Holder Storage
• Air Conditioning Steering Wheel Mounted Controls
• Cruise Control Steering Wheel Mounted Controls
• Auto-dimming Rearview Mirror
• Polished Aluminum Alloy Wheels
• Chrome Rear Bumper Color
• Lumbar Passenger Seat Manual Adjustments
• Reclining Passenger Seat Manual Adjustments
• Reclining Driver Seat Manual Adjustments
• Front Floor Mats
• Gas Front Shock Type
• Gas Rear Shock Type
• 12V Front Power Outlet(s)
• Rear Reading Lights
• Full-size Spare Tire Size
• Power Side Mirror Adjustments
• Dual Illuminating Vanity Mirrors
• Chrome Grille Color
• Trailer Hitch
• Trailer Wiring
• Rear Floor Mats
• Keypad Entry
• Running Boards
• Rear Privacy Glass
• Low Fuel Level Warnings And Reminders
• Tie-down Anchors Pickup Bed Cargo Management
• Auto On Headlights
• Audio Steering Wheel Mounted Controls
• Front Overhead Console
• Pickup Bed Light
• Multi-leaf Rear Suspension Type
• 4-wheel ABS
• Compass
• Power Door Locks
• Keyless Entry Multi-function Remote
• Electronic Brakeforce Distribution
• Vehicle Immobilizer Anti-theft System
• Lumbar Driver Seat Manual Adjustments
• Front Fog Lights
• Power Windows
• Power Steering
• Cruise Control
• Alarm Anti-theft System
• Tachometer Gauge
• Child Seat Anchors
• Dual Front Airbags
• Powertrain Hour Meter
• Dual Rear Wheels
• Clock
• Simulated Wood Door Trim
• 60-40 Split Bench Rear Seat Type
• AM/FM Radio
• Leather Steering Wheel Trim
• Leather Upholstery
• 4 Total Speakers
• Ventilated Disc Front Brake Type
• 40-20-40 Split Bench Front Seat Type
• Center Lap Belt Front Seatbelts
• Front Reading Lights
• 6 Passenger Seat Power Adjustments
• Manual Pickup Sliding Rear Window
• Steel Spare Wheel Type
• Rear Center Folding With Storage Armrests
• Underbody Spare Tire Mount Location
• 2 Front Headrests
• Split Rear Seat Folding
• Intermittent Front Wipers
• MP3 Playback In-Dash CD
• Coil Front Spring Type
• Front Tow Hooks
• 1 One-touch Windows
• Single Disc In-Dash CD
• 2 Rear Headrests
• Front Seatbelt Pretensioners
• Rear Stabilizer Bar
• Front Stabilizer Bar
• 6 Driver Seat Power Adjustments
• Leaf Rear Spring Type
• Dual Front Air Conditioning Zones
• Front Console With Storage Center Console
• Integrated Front Headrests
• Spare Only Wheel Locks
• Manual Hi-lo 4WD Selector
• Simulated Wood Dash Trim
• Solid Live Axle Front Suspension Classification
• Automatic Climate Control Front Air Conditioning
• Solid Live Axle Rear Suspension Classification
• Tilt Steering Wheel
• Partial Wheel Covers
• Part Time 4WD Type
• Multi-link Front Suspension Type
• Carpet Floor Mat Material
• Center Lap Belt Rear Seatbelts
• Front Cupholders
• Disc Rear Brake Type

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 135
• Maximum Alternator Capacity (amps): HD 115
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 9000
• Curb Weight - Front (lbs): 4709
• Curb Weight - Front (lbs): 3991
• Curb Weight - Rear (lbs): 3251
• Curb Weight - Rear (lbs): 3154
• Gross Vehicle Weight Rating Cap (lbs): 13000
• Gross Vehicle Weight Rating Cap (lbs): 12600
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2250
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1965
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3825
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3275
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 9000
• Axle Type - Front: Dana 60 Monobeam
• Axle Type - Rear: Dana 80 Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 9000
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 2910
• Rear Tire Capacity (lbs): 2910
• Spare Tire Capacity (lbs): 2910
• Revolutions/Mile @ 45 mph - Front: 664
• Revolutions/Mile @ 45 mph - Rear: 664
• Revolutions/Mile @ 45 mph - Spare: 664
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 246.2
• Width, Max w/o mirrors (in): 95.5
• Height, Overall (in): 79.6
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.3
• Cab to Axle (in): 39.9
• Cab to End of Frame (in): 80.2
• Ground to Top of Load Floor (in): 35.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 36.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.6
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.1
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Second Head Room (in): - TBD -
• Second Leg Room (in): - TBD -
• Second Shoulder Room (in): - TBD -
• Second Hip Room (in): - TBD -
• Summary

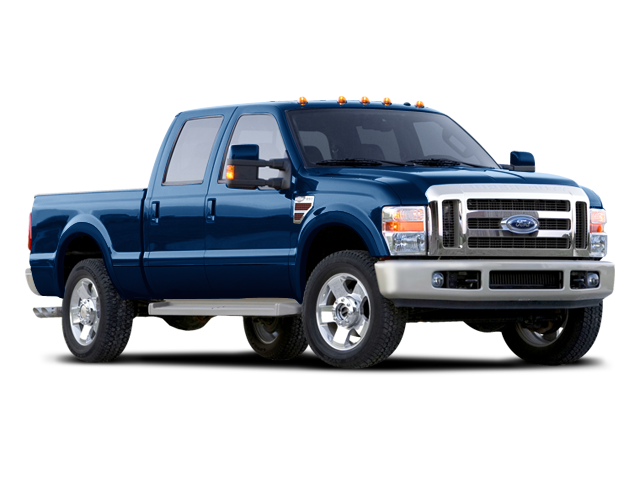

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: Crew Cab 6-3/4'
• Body Code: 156" WB
